Alux

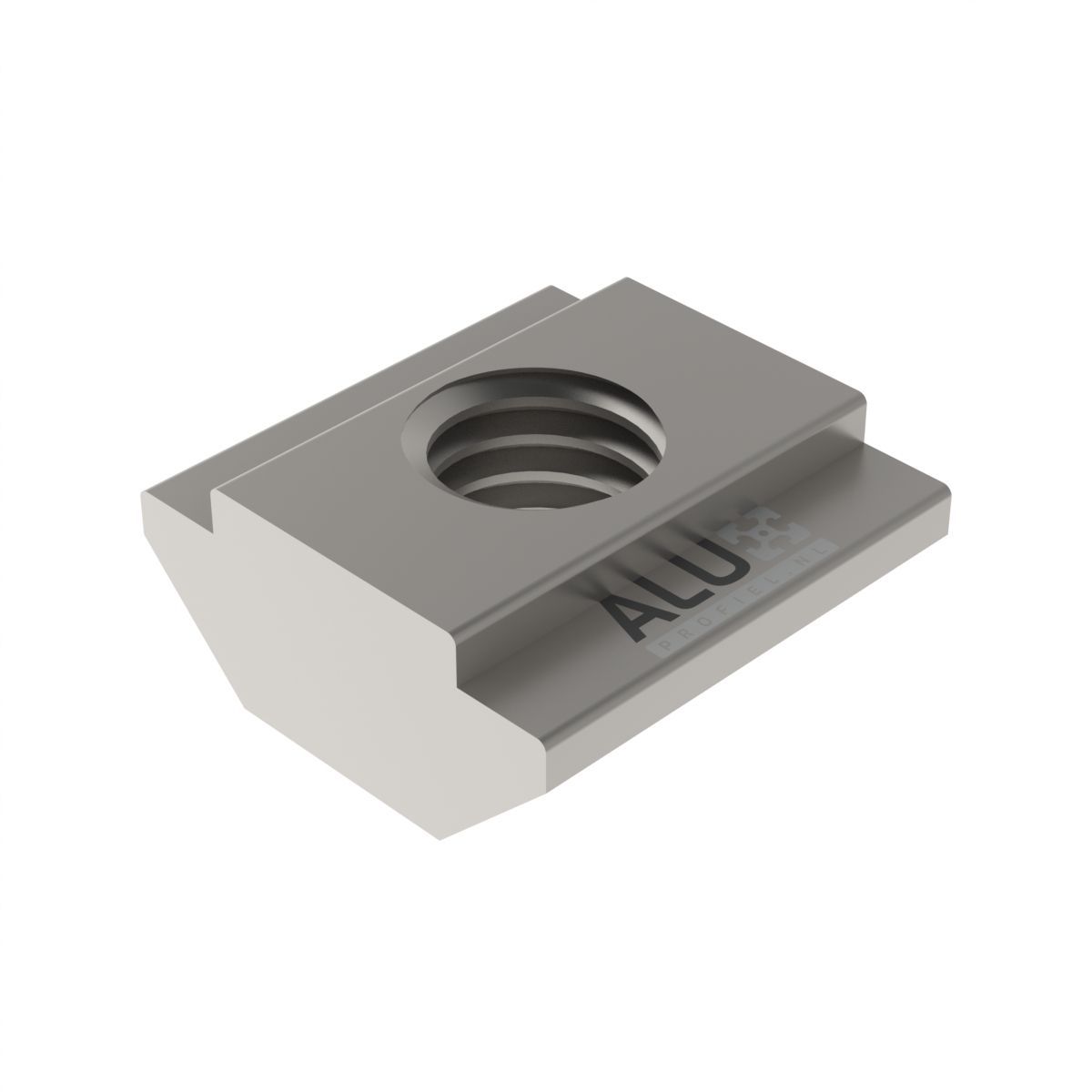

Slide-in T-slot nut, T-slot 6 M5

Article number 6-3-M5
100+ in stock
Weight: 0,0020 kg
EAN-number 6090901040001
0,23
0,28 Included 23% VAT

Description
Attachments

The slide-in T-slot nut is the more robust choice in T-slot nuts. The contact surface between the nut and the T-slot is the biggest of all variants. The slide-in nut has to be inserted into the T-slot from an open side of the profile, and it is not possible to insert the slide-in nut after the T-slot is closed in from both sides. The slide-in nut also doesn't have the same fixation like the roll-in nut and will slide along the length of the nut by itself. This slide-in nut is meant for the 20-series profiles and has a M5 thread.

Material
Steel
Thread
M5
Version
Galvanised
Profile series
20
Type of T-slot nut
Hammer nut
T-slot
6mm
3566_20190112171144_6-3-M5.zip
