Aluminium slot profile 4040 black

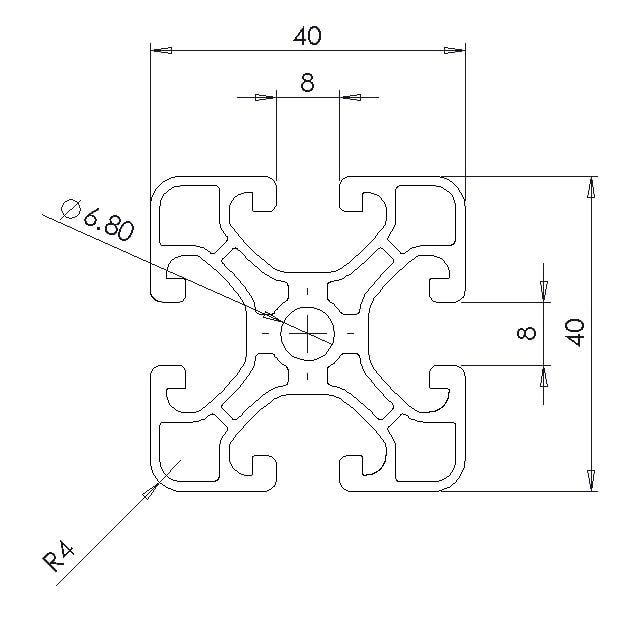

This Alux aluminium slot profile 40x40 black is 40 mm wide and 40 mm high. The aluminium profile has 4 slots, 8 mm wide. The depth of the T slot is 12 mm. On both ends of the profile there is a 6,8 mm hole for cutting M8 threads. The aluminium profiles are anodized in black.
The aluminium 40-profile series that you can find on the Aluxprofile website are compatible with ISB, ISP, I-Type, ITEM aluminium construction profiles.
|
Aluminium profile system |
ITEM, ISB, ISP, I-Type |
|
Aluminium profile slot |
8mm |
|
Aluminium profile range |
40mm |
|
Aluminium profile size |
40x40 mm |
|
Slot size |
8mm -0/+0,3mm |
|
Aluminium profile core |
6.8mm -0.2/+0mm |
|
Aluminium profile cut |
Length -1/+1mm |
 |
4040.step 3D |
|
Aluminium profile surface |
|
|
Anodized surface finish |
E6C35 (Matte black) 10-15 µm |
|
Aluminium profile certification |
|
|
Material specification certificate |
3.1 available on request |
|
Mechanical properties |
|
|
Material specification |
EN-AW 6063 |
|
Annealing |
T66 |
|
Yield |
Rp0.2>=200 [N/ mm2] |
|
Tensile strength |
Rm>=245 [N/ mm2] |
|
Creep (deformation) |
A >= 8 [%] |
|
Creep (deformation) |
A5 0mm>= 6 [%] |
|
Hardness |
>= 80 [HB] |
|
Technical specification |
|
|
Cross-sectional area |
504,80 [mm2] |
|
Center of mass X |
20,00 [mm] |
|
Center of mass Y |
20,00 [mm] |
|
Second moment of area |
Ix 75648,00 [mm4] |
|
Second moment of area |
IY 75648,00 [mm4] |
|
Section modulus |
Wx 3663,40 [mm3] |
|
Section modulus |
Wy 3663,40 [mm3] |
|
Nominal weight |
1,395 [kg/m] |
Aluminium Profile Deflection Calculator
This tool provides approximate, theoretical results that are not guaranteed or replicable in practice.
Aluminium profile configurations
Simply supported profiles
Cantilever profiles
Both ends fixed profiles
