Aluminium slot profile 30120

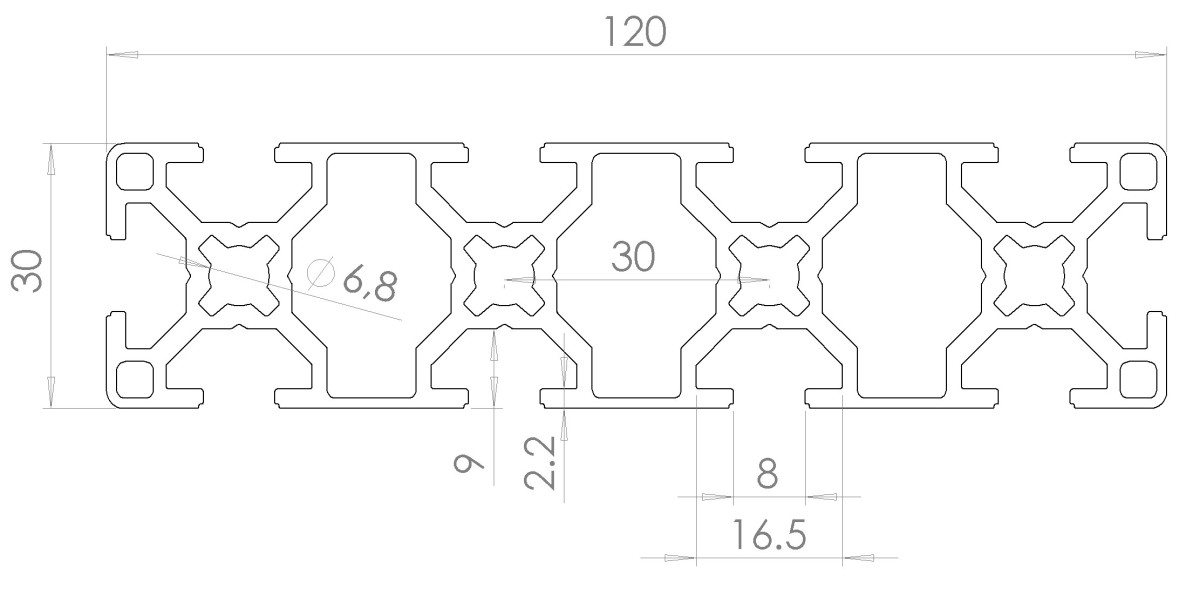

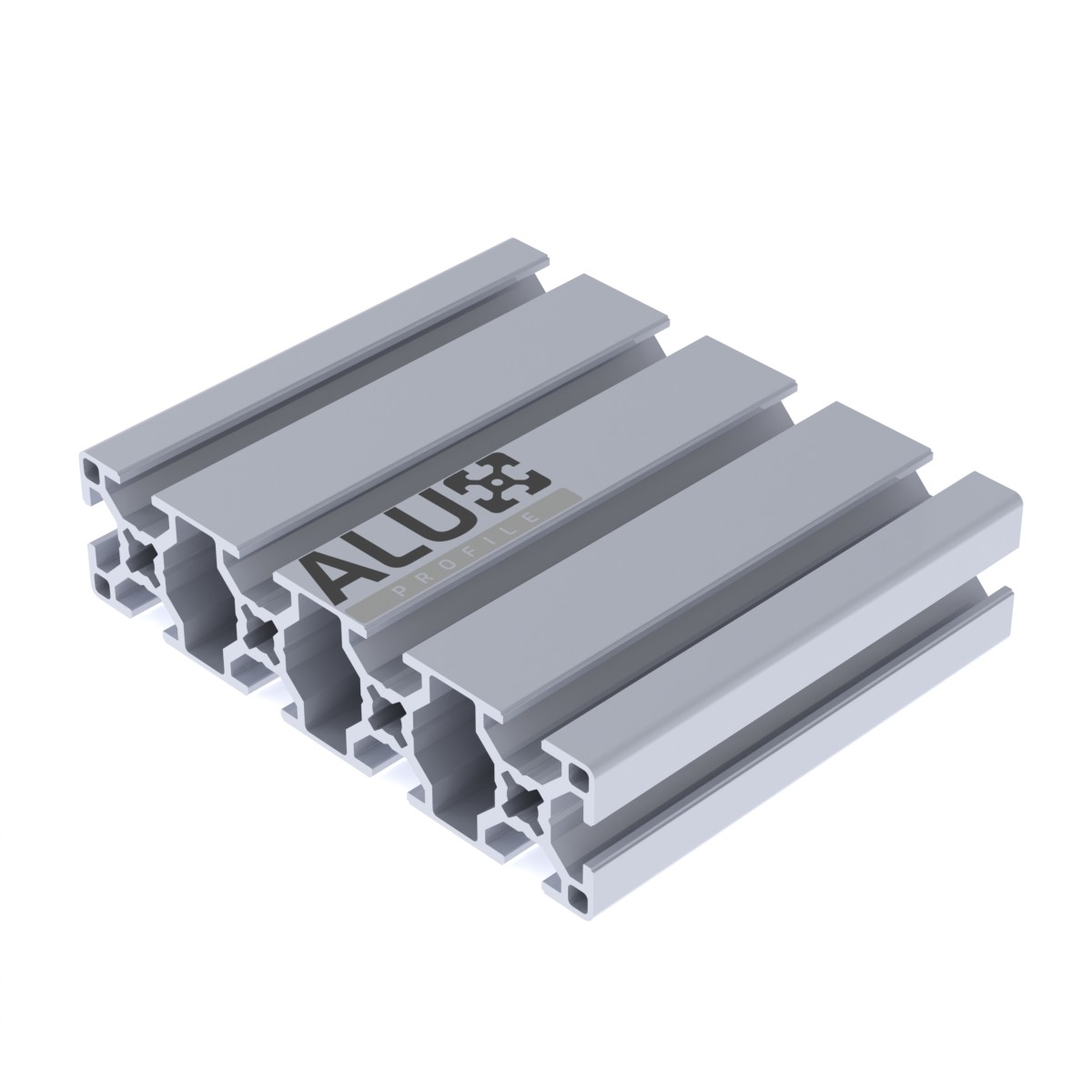

This Alux aluminium slot profile 30x120 is 30 mm wide and 120 mm high. The aluminium profile has 10 slots, 8 mm wide. The depth of the T slot is 9 mm. On both ends of the profile there is a ⌀6,8 mm hole for cutting M8 threads. The aluminium profiles are anodized in a silver-grey aluminium color.
The aluminium 30-profile series that you can find on the Aluxprofile website are compatible with BSB, BSP, B-Type, Bosch aluminium construction profiles.
|
Aluminium profile system |
BOSCH, BSB, BSP, B-Type |
|
Aluminium profile slot |
8mm |
|
Aluminium profile range |
30mm |
|
Aluminium profile size |
30x120 mm |
|
Slot size |
8mm -0/+0,3mm |
|
Aluminium profile core |
6,8mm -0,2/+0,2mm |
|
Aluminium profile cut |
Length -1/+1mm |
 |
30120.step 3D |
|
Aluminium profile surface |
|
|
Anodized surface finish |
E6EV1 (Matte Silver) 10-15 µm |
|
Aluminium profile certification |
|
|
Material specification certificate |
3.1 available on request |
|
Mechanical properties |
|
|
Material specification |
EN-AW 6063 |
|
Annealing |
T66 |
|
Yield |
Rp0.2>=200 [N/ mm2] |
|
Tensile strength |
Rm>=245 [N/ mm2] |
|
Creep (deformation) |
A >= 8 [%] |
|
Creep (deformation) |
A5 0mm>= 6 [%] |
|
Hardness |
>= 80 [HB] |
|
Technical specification |
|
|
Cross-sectional area |
1037,50 [mm2] |
|
Center of mass X |
60 [mm] |
|
Center of mass Y |
15 [mm] |
|
Second moment of area |
Ix 96725,00 [mm4] |
|
Second moment of area |
IY 1382982,00 [mm4] |
|
Section modulus |
Wx 6448,30 [mm3] |
|
Section modulus |
Wy 23049,70 [mm3] |
|
Nominal weight |
2,812 [kg/m] |
